We are excited to announce that Guelph Twines Ltd. will attend the 2024 IWCS Cable & Connectivity Industry Forum! This popular event, now in its 73rd year, is a must-attend for international cable and connectivity industry leaders. It’s a fantastic opportunity to learn, connect, and share insights with other professionals.

Visit Us at Booth #114

Guelph Twines will be set up at Booth #114 to showcase our complete line of high-quality paper and plastic cable fillers, trusted across North America for their exceptional performance and adherence to industry standards.

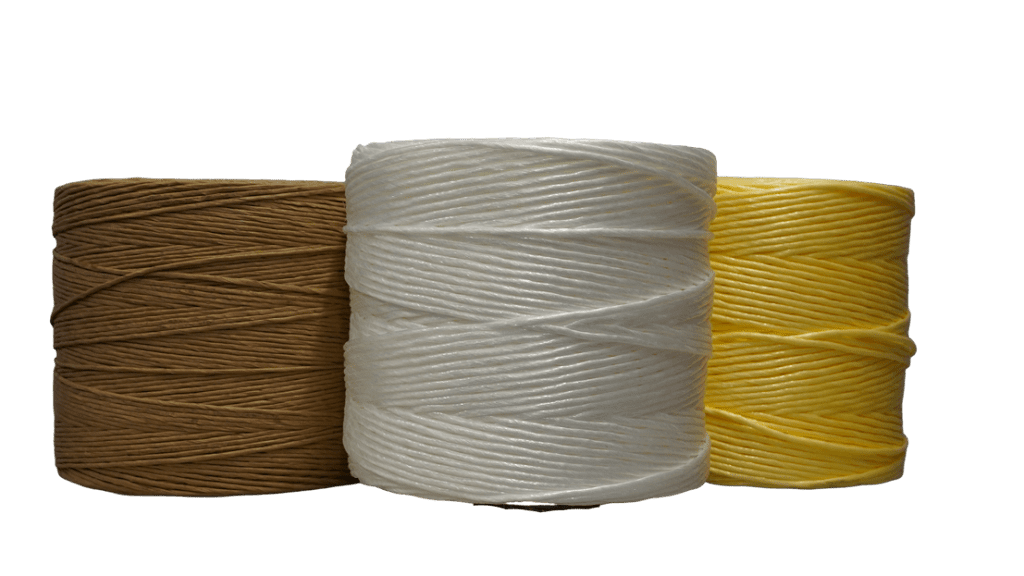

Our Cable Filler Product Line

Twisted Paper Cable Filler

Our twisted paper cable fillers maintain the geometry of an electrical cable by supporting and stabilizing it. We manufacture these fillers by slitting large rolls of paper into varying widths, dipping the strips into wax, and twisting the strips around a reinforcement material (typically fiberglass) for a solid round filler.

Untwisted Plastic Cable Filler

These fillers fill empty spaces within a cable and provide structural support. Made for easy handling during cable manufacturing, our untwisted plastic fillers feature a soft mesh-like pattern that uniformly fills the vacant spaces between conductors inside the cable.

Twisted Plastic Cable Filler

Used to construct cables by providing mechanical support and maintaining the shape of the cable, our twisted plastic fillers help reduce electromagnetic interference (EMI) and crosstalk between conductors. For applications that require a round profile to fill voids, we twist an extruded tape to form a round length.

Engage with Industry Leaders

Participating in the IWCS Forum is not just about presenting our products—it’s about forging valuable connections with cable and connectivity manufacturing leaders. We look forward to engaging in conversations that can drive future innovations and collaborations.

Let’s Connect!

We are excited to meet you at #IWCS2024! Connect with us before or during the conference to discuss how Guelph Twines can support your projects. Don’t miss out on this incredible opportunity to collaborate and innovate together.

See you at IWCS 2024!

Phone: (519) 821-9140
Toll-Free: 1-888-771-9140
Email: info@guelphtwines.com
Website: www.guelphtwines.com

Standard Cable Fillers

Diameter (inches)	Code	Name	Feet / lbs	Tube Size	Tube I.D.
.035/.045	CF500048	.045"/.050" Flat Cable Filler	2,680	10” or 12”	3.25”
0.055	CF700048	.055"/7000 Denier Flat Cable Filler	1,920	10” or 12”	3.25”
0.060	CF180048	.060"/#1800 Flat Cable Filler	1,800	10” or 12”	3.25”
0.063	CF160048	#1600 Flat Cable Filler	1,600	10” or 12”	3.25”
0.065	CF006548	.065" Flat Cable Filler	1,600	10” or 12”	3.25”
0.075	CF007548	.075" Flat Cable Filler	1,170	10” or 12”	3.25”
0.085	CF008518	.085" Flat Cable Filler	900	10” or 12”	3.25”
0.095	CF009518	.095" Flat Cable Filler	720	10” or 12”	3.25”
0.100	CF010018	.100" Flat Cable Filler	600	10” or 12”	3.25”
0.110	CF011018	.110" Flat Cable Filler	550	10” or 12”	3.25”
0.120	CF012018	.120" Flat Cable Filler	465	10” or 12”	3.25”
0.125	CF012548	.125" Flat Cable Filler	415	10” or 12”	3.25”
0.140	CF014018	.140" Flat Cable Filler	350	10” or 12”	3.25”
0.150	CF015018	.150" Flat Cable Filler	265	10” or 12”	3.25”
0.160	CF016018	.160" Flat Cable Filler	240	10” or 12”	3.25”
0.180	CF018018	.180"/U1000 Flat Cable Filler	220	10” or 12”	3.25”

Flame Retardant Cable Fillers

Diameter (inches)	Code	Name	Feet / lbs	Tube Size	Tube I.D.
0.045	CFF50048	.045"/5000 Denier FR Flat Cable Filler	2600	10” or 12”	3.25”
0.055	CF005548	.055" FR Flat Cable Filler	1920	10” or 12”	3.25”
0.065	CFF06548	.065" FR Flat Cable Filler	1400	10” or 12”	3.25”
0.075	CFF07548	.075" FR Flat Cable Filler	1170	10” or 12”	3.25”
0.085	CFF08518	.085" FR Flat Cable Filler	900	10” or 12”	3.25”
0.095	CFF09518	.095" FR Flat Cable Filler	735	10” or 12”	3.25”
0.100	CFF10018	.100" FR Flat Cable Filler	600	10” or 12”	3.25”
0.110	CFF11018	.110" FR Flat Cable Filler	550	10” or 12”	3.25”
0.120	CFF12018	.125" FR Flat Cable Filler	415	10” or 12”	3.25”
0.125	CFF12518	.125" FR Flat Cable Filler	415	10” or 12”	3.25”
0.140	CFF14018	.140" FR Flat Cable Filler	350	10” or 12”	3.25”
0.150	CFF15018	.150" FR Flat Cable Filler	270	10” or 12”	3.25”
0.160	CFF16018	.160" FR Flat Cable Filler	240	10” or 12”	3.25”
0.180	CFF18018	.180"FR Flat Cable Filler	220	10” or 12”	3.25”

Diameter (inches)	Diameter (mm)	Code	Name	Feet / pounds	Twist (tpf)	Tube I.D.
0.055	1.40	SJ0611CT	635-110 SJ Paper Cable Filler	800	9 "S"	1" or 2"
0.071	1.80	SJ0960CT	935-60 SJ Paper Cable Filler	660	9 "S"	1" or 2"
0.078	2.00	PR0020CW	.078” Paper Cable Filler	521	9 "Z"	1" or 2"
0.079	2.00	SJ1260CT	1235-60 SJ Paper Cable Filler	525	9 "S"	1" or 2"
0.094	2.40	PA0024CW	.094” Paper Cable Filler	560	9 "Z"	1" or 2"
0.109	2.80	PA0028CW	.109” Paper Cable Filler	460	9 "Z"	1" or 2"
0.125	3.20	PA0032CW	.125” Paper Cable Filler	315	9 "Z"	1" or 2"
0.140	3.60	PA0036CW	.140” Paper Cable Filler	285	9 "Z"	1" or 2"
0.156	4.00	PA0040CW	.156” Paper Cable Filler	240	9 "Z"	1" or 2"
0.175	4.40	PA0044CW	.175” Paper Cable Filler	183	9 "Z"	1" or 2"
0.187	4.80	PA0048CW	.187” Paper Cable Filler	163	9 "Z"	1" or 2"
0.218	5.60	PA0056CW	.218” FR Paper Cable Filler	121	9 "Z"	1" or 2"
0.295	7.50	PA007552	.295” FR Paper Cable Filler	61	6 "Z"	1" or 2"
0.313	8.00	PA008052	.313” FR Paper Cable Filler	58	6 "Z"	1" or 2"

Diameter (inches)	Diameter (mm)	Code	Name	Tube Size	Feet / pounds	Twist Z (tpf)	Tube I.D.
0.075	1.9	FT007548	.075” Twisted Cable Filler	10	1,050	10.0	1" or 2"
0.085	2.2	FT008548	.085” Twisted Cable Filler	10	735	9.0	1" or 2"
0.095	2.4	FT009548	.095” Twisted Cable Filler	10	630	9.0	1" or 2"
0.100	2.6	FT010348	.100” Twisted Cable Filler	10	550	9.0	1" or 2"
0.110	2.8	FT011048	.110” Twisted Cable Filler	10	467	9.0	1" or 2"
0.125	3.2	FT012548	.125” Twisted Cable Filler	10	380	9.0	1" or 2"
0.140	3.6	FT014048	.140” Twisted Cable Filler	10	307	6.0	1" or 2"
0.160	4.1	FT016048	.160” Twisted Cable Filler	10	235	6.0	1" or 2"
0.180	4.6	FT018048	.180” Twisted Cable Filler	10	185	6.0	1" or 2"
0.200	5.1	FT020028	.200” Twisted Cable Filler	10	152	6.0	1" or 2"
0.225	5.7	FT022548	.225” Twisted Cable Filler	10	124	6.0	1" or 2"
0.240	6.0	FT024048	.240” Twisted Cable Filler	10	104	6.0	1" or 2"
0.275	7.0	FT027548	.275” Twisted Cable Filler	10	92	4.5	1" or 2"
0.300	7.6	FTF30048	.300” Twisted Cable Filler	10	75	4.5	1" or 2"
0.325	8.3	FTF32548	.325” Twisted Cable Filler	10	66	4.5	1" or 2"
0.350	8.9	FTF35048	.350” Twisted Cable Filler	10	57	4.5	1" or 2"

Type	Code	Description	No. of Ends	Denier / End	Total Denier	Tensile (lbs)	Tube	Tube I.D.	Ball Wt.	Tubes / Skid	Colour
Monofilament Rope Yarn	MY3NAT60	4-End Mono Yarn	4	750	3000	35	12	3.25	9	60	Natural
Monofilament Rope Yarn	Various	10-End Mono Yarn	10	300	3000	35	12	3.25	11	60	Various
Monofilament Rope Yarn	Various	16-End Mono Yarn	16	188	3000	35	12	3.25	10	60	Various

Type	Code	Description	Packaging	Avg. Tensile Strength	Avg. Knot Strength	Feet / lbs	Weight / Carton	Length/ Carton	Colour
Twisted Monofilament Twine	PTM14000	M140 Plastic Twine	Center-pull carton	140	80	1000	9	9000	Blue/white
Twisted Monofilament Twine	PTM18000	M180 Plastic Twine	Center-pull carton	180	110	775	9	7000	Blue/white
Twisted Monofilament Twine	PTM24000	M240 Plastic Twine	Center-pull carton	240	140	583	9	5250	Blue/white
Twisted Monofilament Twine	PTM27500	M275 Plastic Twine	Center-pull carton	275	160	500	9	4500	Blue/white
Twisted Monofilament Twine	PTM80000	M800 Plastic Twine	Center-pull carton	800	450	160	9	1450	Blue/white

Type	Code	Description	Meters /KG	Weight / Ball	Meters / Ball	Feet / Ball	Balls / Skid	Colours
Tomato Twine	PI150060	P1500 Tomato Twine, U.V. treated	1007	6.6	6600	21750	60	White, Green
Pepper Twine	PI200060	P2000 Pepper Twine, U.V. treated	1344	5.7	7600	25000	60	White, Green
Grape Twine	RT200030	R2000 Grape Twine - 30 rolls per case	1344	0.5	610	2000	20	White
