Cable Fillers Made in Canada

Guelph Twines Ltd. provides electrical cable industry businesses across North America with high-quality plastic (polypropylene), paper, and flame-retardant cable fillers that meet exacting industry standards.

Our cable fillers are available in various sizes, configurations, and performance options to meet specific design and regulatory requirements. With dependable service, quick lead times, and consistent quality, we help manufacturers enhance performance and streamline operations.

Cable Fillers

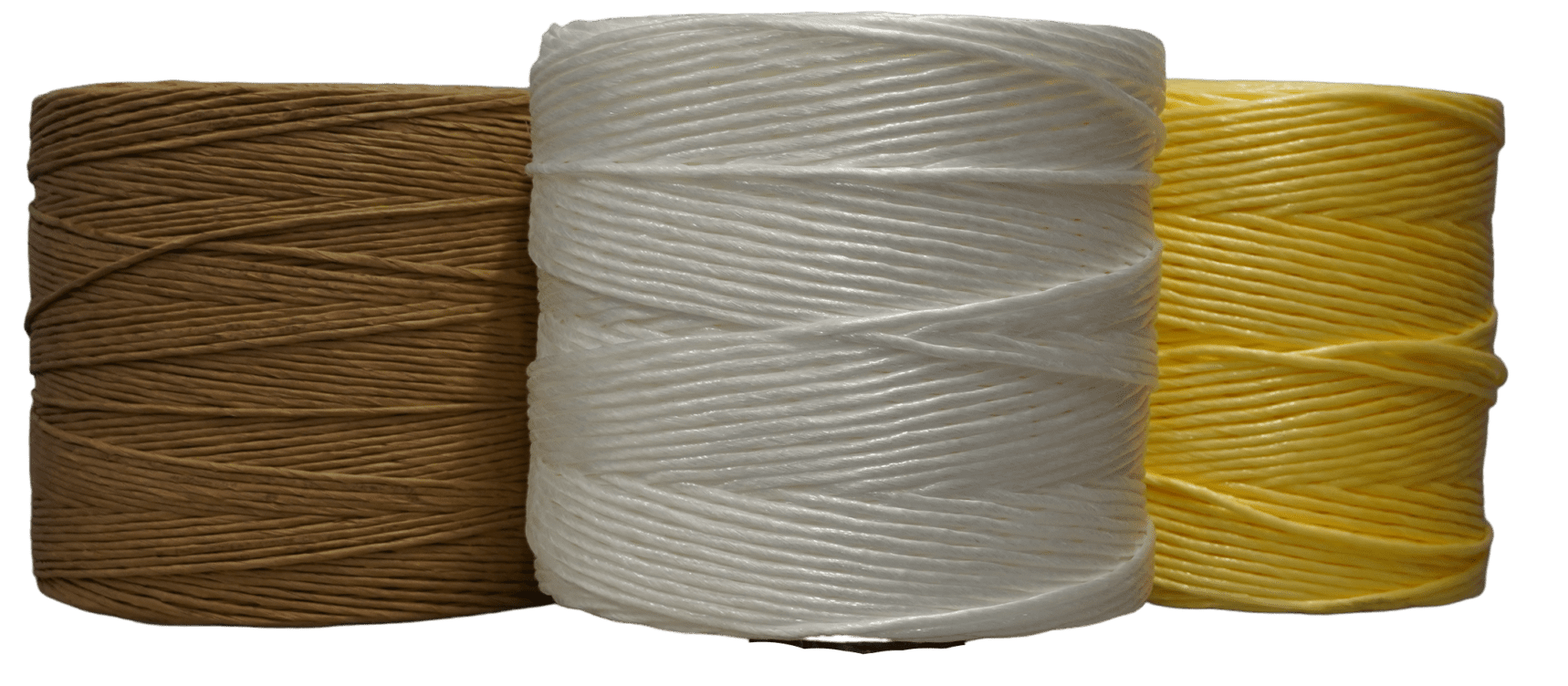

Our Cable Filler Product Line

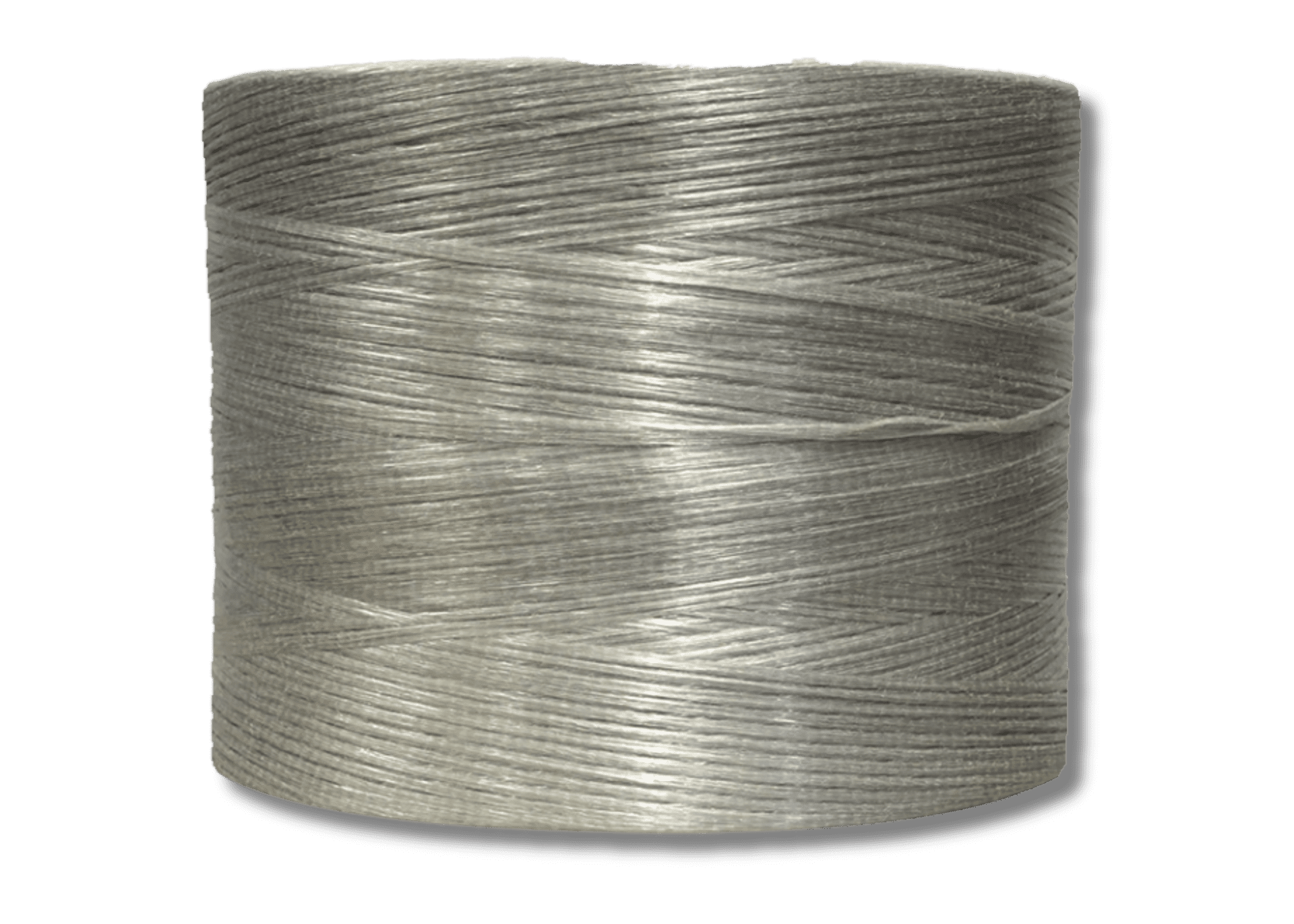

Untwisted Plastic Cable Filler

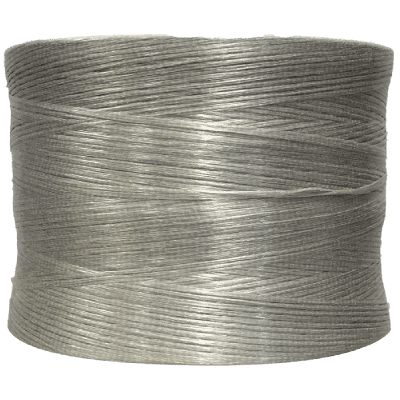

Flat Untwisted Fibrillated Fillers
Our untwisted plastic cable fillers fill empty spaces within a cable and provide structural support for easy handling during cable manufacturing. We use a specialized process to create a soft mesh-like pattern in our flat fibrillated fillers, allowing them to fill the vacant spaces between conductors inside the cable uniformly.

Standard and flame-retardant tubes are available from .04″ (1.2mm) to .180″ (4.6mm). The put-up is on a 12″ traverse by 3.25″ I.D. tubes.

Detailed Specs & Sizes

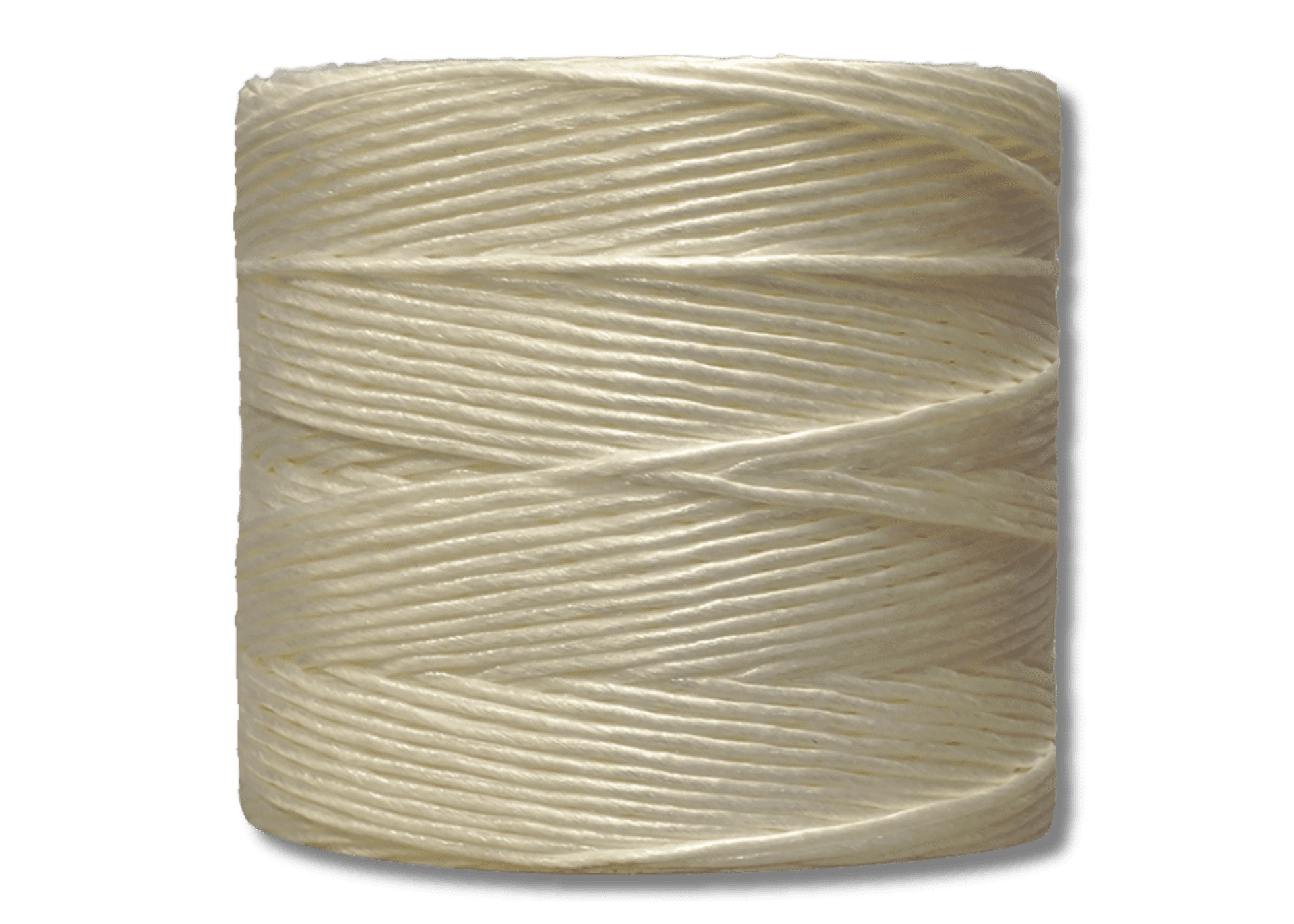

Twisted Plastic Cable Filler

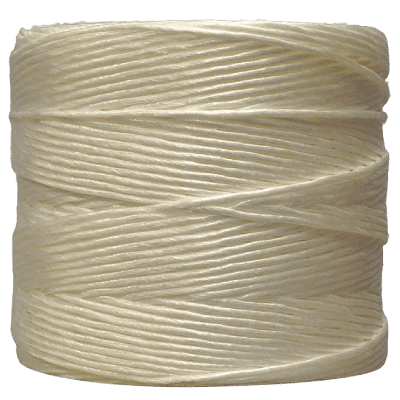

Twisted Plastic Fillers
Used to construct cables to provide mechanical support and maintain their shape, the twisting in our plastic fillers helps reduce electromagnetic interference (EMI) and crosstalk between conductors. Where a round profile is best for filling a void (typically in larger cables), we manufacture our twisted plastic fillers by twisting an extruded tape to form a round length.

Standard and flame-retardant materials are available from .045″ (1.2mm) to .350″ (8.9mm). The put-up is on a 10″ traverse by 2″ I.D. tubes. We can include plugs in the tube to bring the I.D. to 1″.

Detailed Specs & Sizes

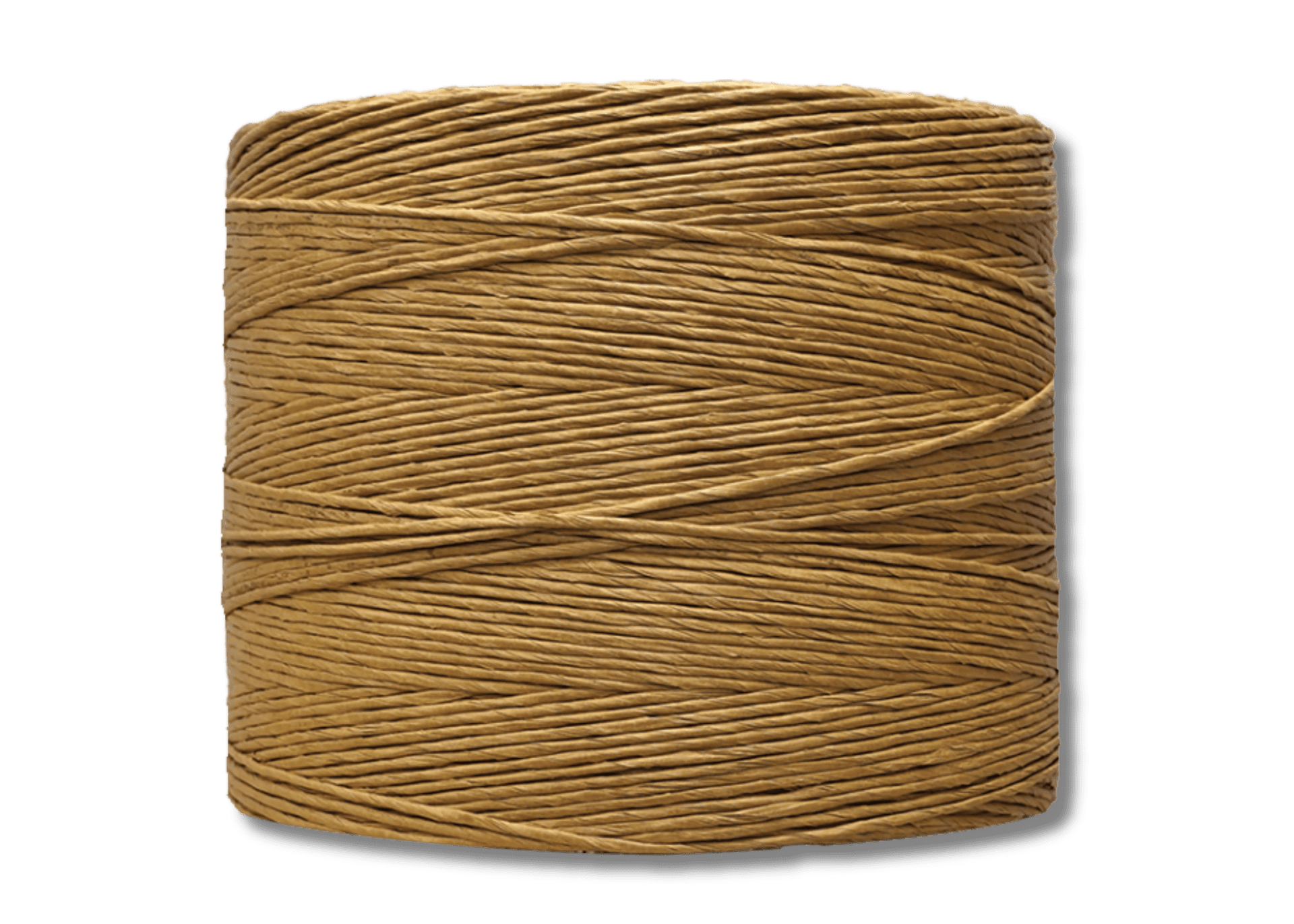

Twisted Paper Cable Filler

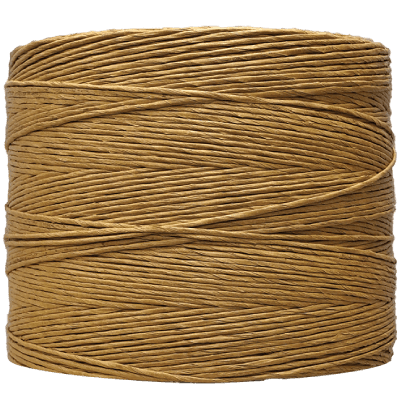

Twisted Paper Fillers
Our twisted paper cable fillers maintain the geometry of an electrical cable by supporting and stabilizing it. We manufacture our twisted paper fillers by slitting large rolls of paper into varying widths, dipping the strips into wax, and twisting the strips around a reinforcement material (typically fiberglass) for a solid round filler.

Standard and flame-retardant materials are available from .055″ (1.4mm) to .313″ (8.0mm). The put-up is on a 10″ traverse by 2″ I.D. tubes. We can include plugs in the tube to bring the I.D. to 1″.

Detailed Specs & Sizes
Cable Filler Customers
Testimonial from Jack D. Rosenthal, Lake Cable, on fast and reliable cable filler supply from Guelph Twines
Testimonial from Kristin Lynch, Southwire, on Guelph Twines cable filler products and customer service

FAQs

What is a cable filler, and why is it used?

A cable filler fills spaces between conductors to maintain shape and structure. It adds strength, reduces movement, and ensures uniform jacket application.

How do I choose the right cable filler for my application?

The right cable filler depends on the cable type, environment, and performance needs. For optimal fit, consider flame retardancy, strength, and flexibility.

How do I choose between paper and plastic cable fillers?

The choice depends on cable design and application needs. Paper fillers offer thermal resistance and rigidity, while plastic fillers provide flexibility and moisture resistance.

What types of cables typically require electrical cable fillers?

Electrical cable fillers are used in power, control, telecommunication, and instrumentation cables to maintain shape, support conductors, and ensure consistent cable geometry.

Are your cable filler products customizable to specific manufacturing requirements?

We offer customizable fillers by size, material, and flame rating tailored to meet manufacturing needs and industry standards.
Download Our Cable Filler Product Sheet

We Deliver with Consistency and Care

Canada Flag
US Flag
Mexico Flag

We proudly serve agricultural, industrial, and commercial partners across North America with reliable distribution throughout Canada, the United States, and Mexico.

Twisted Paper Cable Filler

(Standard and Flame Retardant)

Diameter

(inches)

Code

Name

Feet / Pounds

Twist (tpf)

Tube Size (inches)

Tube I.D. (inches)

.055"

SJ0611CT

635-110 SJ Paper Cable Filler

800

9.0 "S"

10"

1" or 2"

.071"

SJ0960CT

935-60 SJ Paper Cable Filler

660

9.0 "S"

10"

1" or 2"

.078"

PA0020CW

.078" Paper Cable Filler

521

9.0 "Z"

10"

1" or 2"

.079"

SJ1260CT

1235-60 SJ Paper Cable Filler

525

9.0 "S"

10"

1" or 2"

.094"

PA0024CW

.094" Paper Cable Filler

560

9.0 “Z”

10"

1" or 2"

.109"

PA0028CW

.109" Paper Cable Filler

460

9.0 “Z”

10"

1" or 2"

125"

PA0032CW

.125" Paper Cable Filler

315

9.0 "Z"

10"

1" or 2"

.140"

PA0036CW

.140" Paper Cable Filler

285

9.0 "Z"

10"

1" or 2"

156"

PA0040CW

.156" Paper Cable Filler

240

9.0 "Z"

10"

1" or 2"

.175"

PA0044CW

.175" Paper Cable Filler

183

9.0 "Z"

10"

1" or 2"

.187"

PA0048CW

.187" Paper Cable Filler

163

9.0 "Z"

10"

1" or 2"

.218"

PA005600

.218" Paper Cable Filler

121

9.0 "Z"

10"

1" or 2"

295"

PA007500

.295" Paper Cable Filler

61

9.0 "Z"

10" or 14”

1" or 2"

.313"

PA008000

.313" Paper Cable Filler

58

9.0 "Z"

10" or 14”

1" or 2"


Colour Available: Brown

Twisted Plastic Cable Filler

(Standard and Flame Retardant)

Diameter

(inches)

Code

Name

Feet / Pounds

Twist Z (tpf)

Tube Size (inches)

Tube I.D. (inches)

.075"

FT007560

.075" Twisted Cable Filler

1,050

10.0 “Z”

10"

1, 2, or 3.25”

.085"

FT008560

.085" Twisted Cable Filler

735

9.0 “Z”

10"

1, 2, or 3.25”

.095"

FT009560

.095" Twisted Cable Filler

630

9.0 “Z”

10"

1, 2, or 3.25”

.100"

FT010360

.100" Twisted Cable Filler

550

9.0 “Z”

10"

1, 2, or 3.25”

.110"

FT011060

.110" Twisted Cable Filler

467

9.0 “Z”

10"

1, 2, or 3.25”

.125"

FT012560

125" Twisted Cable Filler

380

9.0 “Z”

10"

1, 2, or 3.25”

.140"

FT014048

.140" Twisted Cable Filler

307

6.0 “Z”

10"

1, 2, or 3.25”

.160"

FT016048

.160" Twisted Cable Filler

235

6.0 “Z”

10"

1, 2, or 3.25”

.180"

FT018048

.180" Twisted Cable Filler

185

6.0 “Z”

10"

1, 2, or 3.25”

.200"

FT020048

.200" Twisted Cable Filler

152

6.0 “Z”

10"

1, 2, or 3.25”

.225"

FT022548

.225" Twisted Cable Filler

124

6.0 “Z”

10"

1, 2, or 3.25”

.240"

FT024048

.240" Twisted Cable Filler

104

6.0 “Z”

10"

1, 2, or 3.25”

.275"

FT027548

.275" Twisted Cable Filler

92

4.5 “Z”

10"

1, 2, or 3.25”

.300"

FT030048

300" Twisted Cable Filler

75

4.5 “Z”

10"

1, 2, or 3.25”

.325"

FT032548

.325" Twisted Cable Filler

66

4.5 “Z”

10"

1, 2, or 3.25”

.350"

FT035048

.350" Twisted Cable Filler

57

4.5 “Z”

10"

1, 2, or 3.25”


Colours Available: White (Standard), Yellow (Flame Retardant)

Untwisted Plastic Cable Filler

(Standard and Flame Retardant)

Diameter

(inches)

Code

Name

Feet / Pounds

Tube Size (inches)

Tube I.D. (inches)

045"

CF500048

.045" / 5000 Denier Flat Cable Filler

2,680

10” or 12"

3.25"

.055"

CF700048

.055" / 7000 Denier Flat Cable Filler

1,920

10” or 12"

3.25"

060"

CF180048

#1800 Flat Cable Filler

1,800

10” or 12"

3.25"

.063"

CF160048

#1600 Flat Cable Filler

1,600

10” or 12"

3.25"

.065"

CF006548

.065" Flat Cable Filler

1,600

10” or 12"

3.25"

.075"

CF007548

.075" Flat Cable Filler

1,170

10” or 12"

3.25"

.085"

CF008518

.085" Flat Cable Filler

900

10” or 12"

3.25"

095"

CF009518

.095" Flat Cable Filler

720

10” or 12"

3.25"

.100"

CF010018

.100" Flat Cable Filler

600

10” or 12"

3.25"

110"

CF011018

.110" Flat Cable Filler

550

10” or 12"

3.25"

120"

CF012018

.120" Flat Cable Filler

465

10” or 12"

3.25"

.125"

CF012518

.125" Flat Cable Filler

415

10” or 12"

3.25"

.140"

CF014018

.140" Flat Cable Filler

350

10” or 12"

3.25"

.150"

CF015018

.150" Flat Cable Filler

265

10” or 12"

3.25"

.160"

CF016018

.160" Flat Cable Filler

240

10” or 12"

3.25"

.180"

CF018018

.180" Flat Cable Filler

220

10” or 12"

3.25"


Colours Available: Silver (Standard), Yellow (Flame Retardant)

Diameter
(inches)

Diameter
(mm)

Code

Name

Feet /
pounds

Twist
(tpf)

Tube
I.D.

0.055

1.40

SJ0611CT

635-110 SJ Paper Cable Filler

800

9 "S"

1" or 2"

0.071

1.80

SJ0960CT

935-60 SJ Paper Cable Filler

660

9 "S"

1" or 2"

0.078

2.00

PR0020CW

.078” Paper Cable Filler

521

9 "Z"

1" or 2"

0.079

2.00

SJ1260CT

1235-60 SJ Paper Cable Filler

525

9 "S"

1" or 2"

0.094

2.40

PA0024CW

.094” Paper Cable Filler

560

9 "Z"

1" or 2"

0.109

2.80

PA0028CW

.109” Paper Cable Filler

460

9 "Z"

1" or 2"

0.125

3.20

PA0032CW

.125” Paper Cable Filler

315

9 "Z"

1" or 2"

0.140

3.60

PA0036CW

.140” Paper Cable Filler

285

9 "Z"

1" or 2"

0.156

4.00

PA0040CW

.156” Paper Cable Filler

240

9 "Z"

1" or 2"

0.175

4.40

PA0044CW

.175” Paper Cable Filler

183

9 "Z"

1" or 2"

0.187

4.80

PA0048CW

.187” Paper Cable Filler

163

9 "Z"

1" or 2"

0.218

5.60

PA0056CW

.218” FR Paper Cable Filler

121

9 "Z"

1" or 2"

0.295

7.50

PA007552

.295” FR Paper Cable Filler

61

6 "Z"

1" or 2"

0.313

8.00

PA008052

.313” FR Paper Cable Filler

58

6 "Z"

1" or 2"

Diameter
(inches)

Diameter
(mm)

Code

Name

Tube Size

Feet /
pounds

Twist
Z
(tpf)

Tube
I.D.

0.075

1.9

FT007548

.075” Twisted Cable Filler

10

1,050

10.0

1" or 2"

0.085

2.2

FT008548

.085” Twisted Cable Filler

10

735

9.0

1" or 2"

0.095

2.4

FT009548

.095” Twisted Cable Filler

10

630

9.0

1" or 2"

0.100

2.6

FT010348

.100” Twisted Cable Filler

10

550

9.0

1" or 2"

0.110

2.8

FT011048

.110” Twisted Cable Filler

10

467

9.0

1" or 2"

0.125

3.2

FT012548

.125” Twisted Cable Filler

10

380

9.0

1" or 2"

0.140

3.6

FT014048

.140” Twisted Cable Filler

10

307

6.0

1" or 2"

0.160

4.1

FT016048

.160” Twisted Cable Filler

10

235

6.0

1" or 2"

0.180

4.6

FT018048

.180” Twisted Cable Filler

10

185

6.0

1" or 2"

0.200

5.1

FT020028

.200” Twisted Cable Filler

10

152

6.0

1" or 2"

0.225

5.7

FT022548

.225” Twisted Cable Filler

10

124

6.0

1" or 2"

0.240

6.0

FT024048

.240” Twisted Cable Filler

10

104

6.0

1" or 2"

0.275

7.0

FT027548

.275” Twisted Cable Filler

10

92

4.5

1" or 2"

0.300

7.6

FTF30048

.300” Twisted Cable Filler

10

75

4.5

1" or 2"

0.325

8.3

FTF32548

.325” Twisted Cable Filler

10

66

4.5

1" or 2"

0.350

8.9

FTF35048

.350” Twisted Cable Filler

10

57

4.5

1" or 2"

Standard Cable Fillers

Diameter
(inches)

Code

Name

Feet / lbs

Tube Size

Tube I.D.

.035/.045

CF500048

.045"/.050" Flat Cable Filler

2,680

10” or 12”

3.25”

0.055

CF700048

.055"/7000 Denier Flat Cable Filler

1,920

10” or 12”

3.25”

0.060

CF180048

.060"/#1800 Flat Cable Filler

1,800

10” or 12”

3.25”

0.063

CF160048

#1600 Flat Cable Filler

1,600

10” or 12”

3.25”

0.065

CF006548

.065" Flat Cable Filler

1,600

10” or 12”

3.25”

0.075

CF007548

.075" Flat Cable Filler

1,170

10” or 12”

3.25”

0.085

CF008518

.085" Flat Cable Filler

900

10” or 12”

3.25”

0.095

CF009518

.095" Flat Cable Filler

720

10” or 12”

3.25”

0.100

CF010018

.100" Flat Cable Filler

600

10” or 12”

3.25”

0.110

CF011018

.110" Flat Cable Filler

550

10” or 12”

3.25”

0.120

CF012018

.120" Flat Cable Filler

465

10” or 12”

3.25”

0.125

CF012548

.125" Flat Cable Filler

415

10” or 12”

3.25”

0.140

CF014018

.140" Flat Cable Filler

350

10” or 12”

3.25”

0.150

CF015018

.150" Flat Cable Filler

265

10” or 12”

3.25”

0.160

CF016018

.160" Flat Cable Filler

240

10” or 12”

3.25”

0.180

CF018018

.180"/U1000 Flat Cable Filler

220

10” or 12”

3.25”



Flame Retardant Cable Fillers

Diameter
(inches)

Code

Name

Feet / lbs

Tube Size

Tube I.D.

0.045

CFF50048

.045"/5000 Denier FR Flat Cable Filler

2600

10” or 12”

3.25”

0.055

CF005548

.055" FR Flat Cable Filler

1920

10” or 12”

3.25”

0.065

CFF06548

.065" FR Flat Cable Filler

1400

10” or 12”

3.25”

0.075

CFF07548

.075" FR Flat Cable Filler

1170

10” or 12”

3.25”

0.085

CFF08518

.085" FR Flat Cable Filler

900

10” or 12”

3.25”

0.095

CFF09518

.095" FR Flat Cable Filler

735

10” or 12”

3.25”

0.100

CFF10018

.100" FR Flat Cable Filler

600

10” or 12”

3.25”

0.110

CFF11018

.110" FR Flat Cable Filler

550

10” or 12”

3.25”

0.120

CFF12018

.125" FR Flat Cable Filler

415

10” or 12”

3.25”

0.125

CFF12518

.125" FR Flat Cable Filler

415

10” or 12”

3.25”

0.140

CFF14018

.140" FR Flat Cable Filler

350

10” or 12”

3.25”

0.150

CFF15018

.150" FR Flat Cable Filler

270

10” or 12”

3.25”

0.160

CFF16018

.160" FR Flat Cable Filler

240

10” or 12”

3.25”

0.180

CFF18018

.180"FR Flat Cable Filler

220

10” or 12”

3.25”

Skip to content
